Manufactured in accordance with BS EN13155: 2003 + A2: 2009 – Cranes – Safety – Non Fixed Loading Lifting Attachments.
The William Hackett Universal Beam Clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable.
The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam and also acts as a semi-permanent anchor point.
It is possible to load it at any angle and eliminates the use of spreader beams in various lifting operations.
Fitted with an adjustable locking mechanism, it ensures secure clamping to the beam.
Additionally, it has a built-in suspension point for low headroom design.
Its lightweight design allows for quick clamping and unclamping.
WLL capacities are available at 3.2 tonnes, 5.0 tonnes and 10.0 tonnes. These are designed to accommodate a range of beam widths.

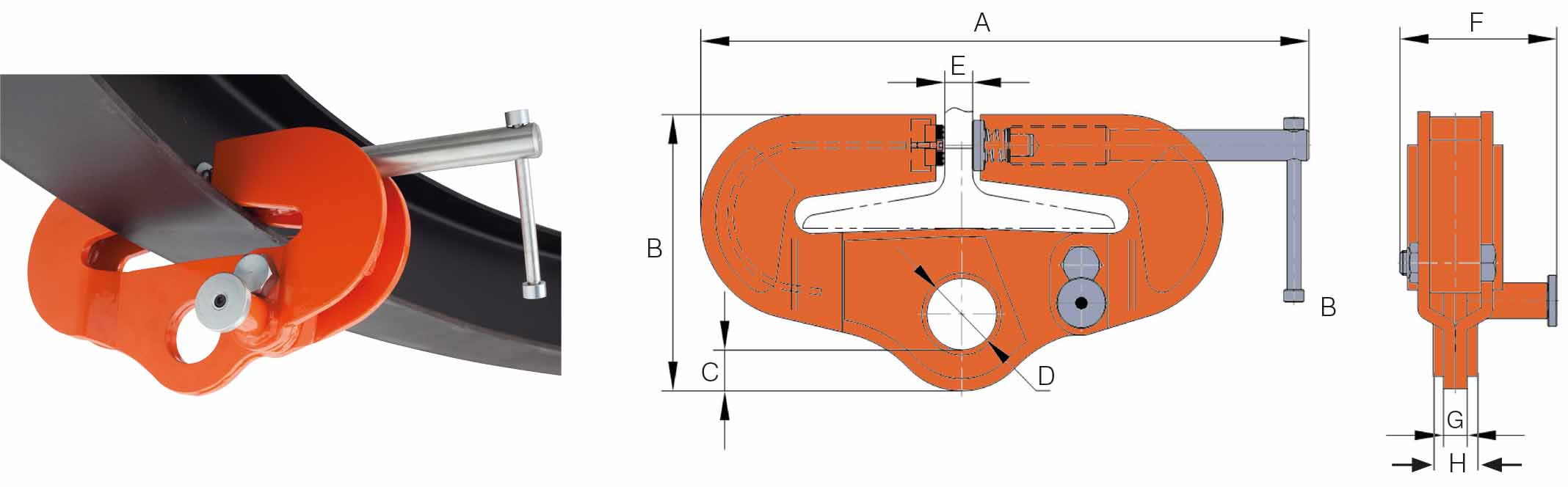

Part Code | WLL (tonnes) | A mm | B mm | C mm | D mm | E mm | F mm | G mm | Beam Width (mm) | Mass (kg) |
---|---|---|---|---|---|---|---|---|---|---|
028.200 | 2.0 | 450.0 | 203 | 22.5 | Ø58 | 32.5 | 118 | 16 | 76-204 | 9.5 |
028.320 | 3.20 | 550 | 237 | 30 | Ø60 | 32 | 133 | 20 | 125-204 | 14.40 |
028.500 | 5.00 | 615 | 275 | 40 | Ø75 | 32 | 157 | 44 | 125-305 | 26.60 |
028.1000 | 10.00 | 615 | 275 | 40 | Ø75 | 32 | 225 | 44 | 125-305 | 38.50 |
028.1000.E | 10.0 | 700.0 | 298 | 38.0 | Ø80 | 70.0 | 230 | 44 | 225-405 | 47.0 |
