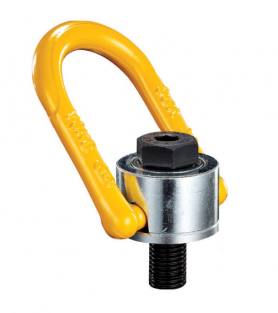

Yoke Digital Swivel Hoist Ring – type 231 metric thread

£44.50–£820.00 ex. VAT
£53.40–£984.00 incl. VAT

Part Code:

Clear

Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
Manufactured from forged alloy steel, quenched and tempered and tested in accordance with EN1677-1.
Load rated parts are 100% magnaflux crack detected & the individual forged parts & cap screw are traceable to Test Certification.
Bolts are Metric thread 10.9.
Proof tested to 2.5 times the WLL and Fatigue rated to 1.5 times the WLL.
Design Factor 4 : 1
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just a tapped hole is required.

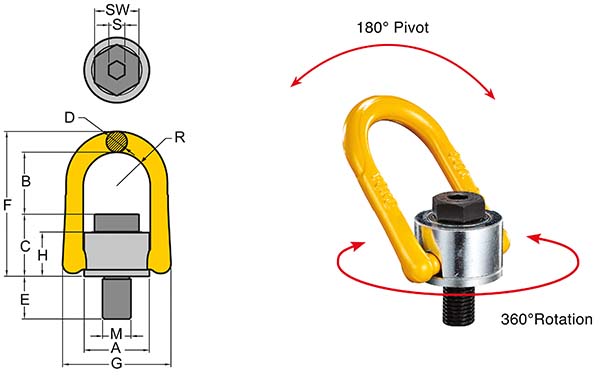

Part Code	WLL (t) 4:1	Thread M	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	R mm	S mm	SW mm	Torque in Nm	Mass kg
8-231-005	0.5	M8 x 1.25	33	42	28	11	12	80	58	23	17	6	13	30	0.3
8-231-007	0.7	M10x 1.50	33	41	29	11	15	80	58	23	17	6	17	60	0.3
8-231-010	1	M12 x 1.75	33	40	31	11	20	80	58	23	17	8	19	100	0.3
8-231-015	1.5	M14 x 2.0	50	56	45	17	21	117	90	36	27	10	22	120	0.9
8-231-020	2	M16 x 2.0	50	54	46	17	24	117	90	36	27	10	24	150	0.9
8-231-025	2.5	M18 x 2.5	65	78	57	20	26	153	108	44	34	12	30	200	1.9
8-231-030	3	M20 x 2.5	50	52	49	17	30	117	90	36	27	12	30	250	1
8-231-050	5	M24 x 3.0	72	81	59	25	36	163	125	44	37	14	36	400	2.6
8-231-078	7.8	M30 x 3.5	87	94	81	30	48	204	148	62	46	17	46	500	5
8-231-125	12.5	M36 x 4.0	110	112	98	36	54	247	188	75	57	22	55	1000	9.6
8-231-156	15.6	M42 x 4.5	110	101	108	36	63	247	188	83	57	24	65	1500	10.9
8-231-200	20	M48 x 5.0	110	97	113	36	72	248	188	83	57	27	75	2000	11.6
8-231-220	22	M56 x 5.5	123	116	121	36	84	274	202	91	64	27	85	2100	15
8-231-225	22.5	M64 x 6.0	123	111	126	36	100	274	202	91	64	32	95	2200	16.3
