Yoke Digital Grade 8 Key Eye Point – type 291K metric thread
£21.50–£305.00 ex. VAT
£25.80–£366.00 incl. VAT
- Rotates through 360° adjustable in the direction of the load.
- Manufactured from alloy steel, quenched and tempered. Captive bolt with high WLL.
- Manufactured and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected.
- Individual forged parts and cap screw are traceable to Test Certification.
- Bolts are Metric thread (ASME / ANSI B18.3.1M).
- Proof tested to 2.5 times the WLL.
- Fatigue rated to 1.5 times the WLL.
- Design Factor 4 : 1
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required.

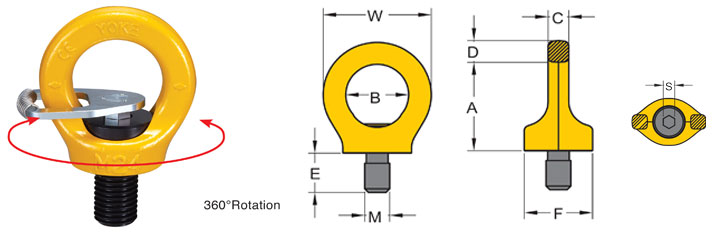

| Part Code | WLL tonnes | Thread M | Thread E | Pitch DIN13 | A mm | B mm | C mm | D mm | F mm | S mm | W mm | Torque in Nm | Mass Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-291K-004 | 0.4 (1) | M10 | 15 | 1.5 | 38 | 25 | 9 | 9 | 25 | 6 | 44 | 10 | 0.1 |
| 8-291K-007 | 0.75 (2) | M12 | 18 | 1.75 | 45 | 30 | 10 | 11 | 33 | 8 | 52 | 10 | 0.2 |
| 8-291K-015 | 1.5 (4) | M16 | 24 | 2 | 52 | 35 | 14 | 13 | 35 | 10 | 61 | 30 | 0.4 |
| 8-291K-023 | 2.3 (6) | M20 | 30 | 2.5 | 60 | 40 | 16 | 15 | 44 | 12 | 70 | 70 | 0.6 |
| 8-291K-032 | 3.2 (8) | M24 | 36 | 3 | 72 | 49 | 19 | 18 | 53 | 14 | 84 | 150 | 1.1 |
| 8-291K-045 | 4.5 (12) | M30 | 45 | 3.5 | 91 | 61 | 24 | 22 | 62 | 17 | 105 | 350 | 2.1 |
| 8-291K-070 | 7.0 (16) | M36 | 54 | 4 | 110 | 73 | 29 | 27 | 76 | 22 | 126 | 410 | 3.7 |
| 8-291K-090 | 9.0 (24) | M42 | 63 | 4.5 | 128 | 83 | 34 | 32 | 89 | 24 | 147 | 550 | 5.8 |
| 8-291K-120 | 12.0 (32) | M48 | 72 | 5 | 145 | 95 | 38 | 37 | 105 | 27 | 168 | 550 | 8.6 |
