Metric Bownuts (High Tensile Steel)
Please call to check availability
£2.06–£39.54 ex. VAT
£2.47–£47.45 incl. VAT
Lifting Bownuts to BS3974
PDF Download
Lifting bownuts in metric coarse thread.
- Material: High Tensile Steel
- Safety Factor: MBL equals 5 x MBL
- Standard: Generally to BS3974 – Part 1 – 1974
- Finish: Self colour or electro galvanised (Zinc plated)

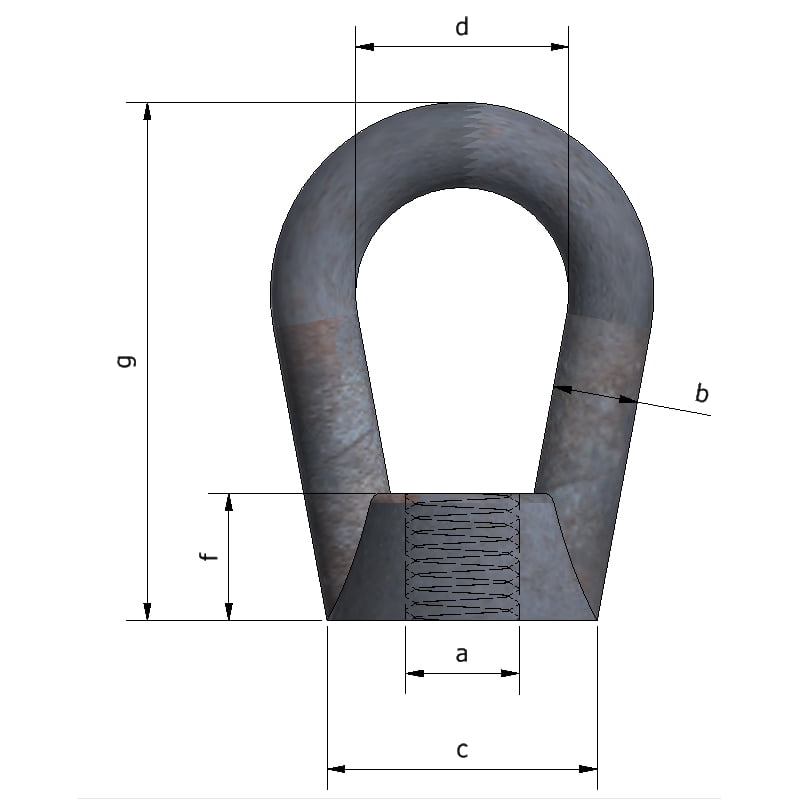

| Safe Working Load (t) | Diameter thread a (mm) | Diameter eye b (mm) | Diameter base c (mm) | Width eye inside d (mm) | Base height f (mm) | Height overall g (mm) |
|---|---|---|---|---|---|---|
| 0.23 | 8 | 10 | 32 | 25 | 16 | 64 |
| 0.36 | 10 | 10 | 32 | 25 | 16 | 64 |
| 0.53 | 12 | 12 | 38 | 30 | 17 | 73 |
| 1.01 | 16 | 12 | 38 | 30 | 17 | 73 |
| 1.58 | 20 | 14 | 45 | 40 | 25 | 102 |
| 2.28 | 24 | 17 | 50 | 50 | 29 | 124 |
| 3.65 | 30 | 26 | 70 | 75 | 29 | 149 |
| 5.34 | 36 | 26 | 70 | 75 | 29 | 149 |
