WH-PT Push Trolley

£109.78–£398.96 ex. VAT
£131.74–£478.75 incl. VAT

Part Code:

Clear

The William Hackett WH-PT Push Trolley meets and exceeds the requirements of international standard and British Standard:

BS EN 13157:2004 + AI:2009

This high quality trolley range is precision engineered so that it works for W.L.L. capacities from 500kg up to 10 tonnes. The push trolley enables exact positioning or easy traversing of large loads with manual hoists.

The design of the Hackett series trolley also means that it suits various track widths.

The precision machined trolley wheels rotate on maintenance sealed ball bearings.

Furthermore, all of the William Hackett push trolleys have anti-jump bars and rubber end stops as standard.

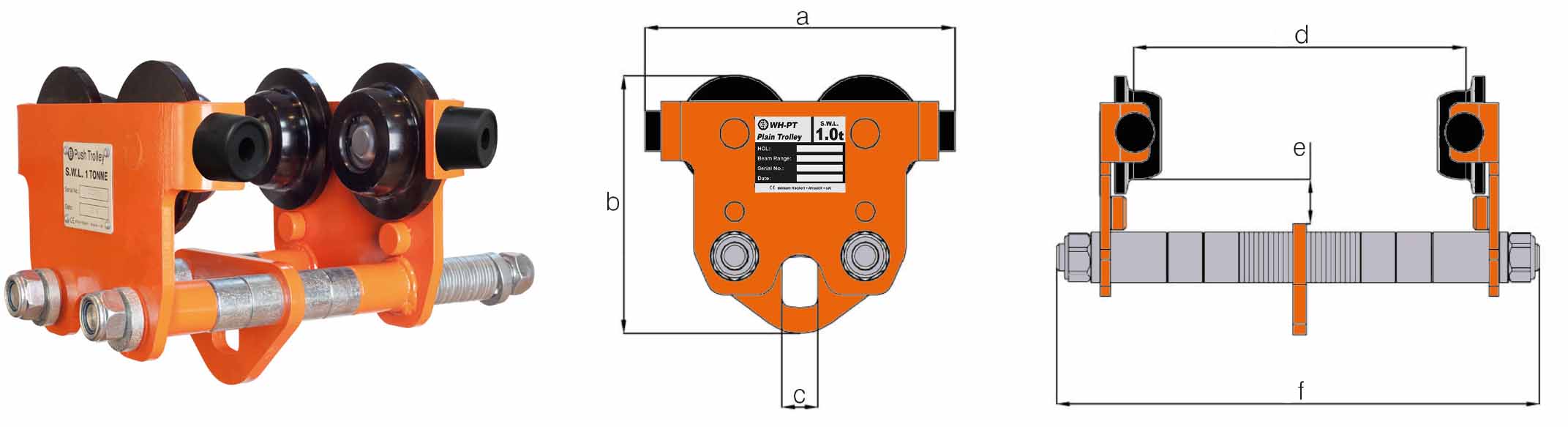

Part Code	WLL tonnes	Min. Radius of Curve m	a mm	b mm	c mm	e mm
044.050	0.50	0.80	190	154	22	27
044.100	1.00	0.90	206	180	30	26
044.200	2.00	1.00	246	210	37	26
044.320	3.20	1.20	300	249	42	28
044.500	5.00	1.30	336	277	50	37
044.1000	10.00	2.00	396	334	58	37
