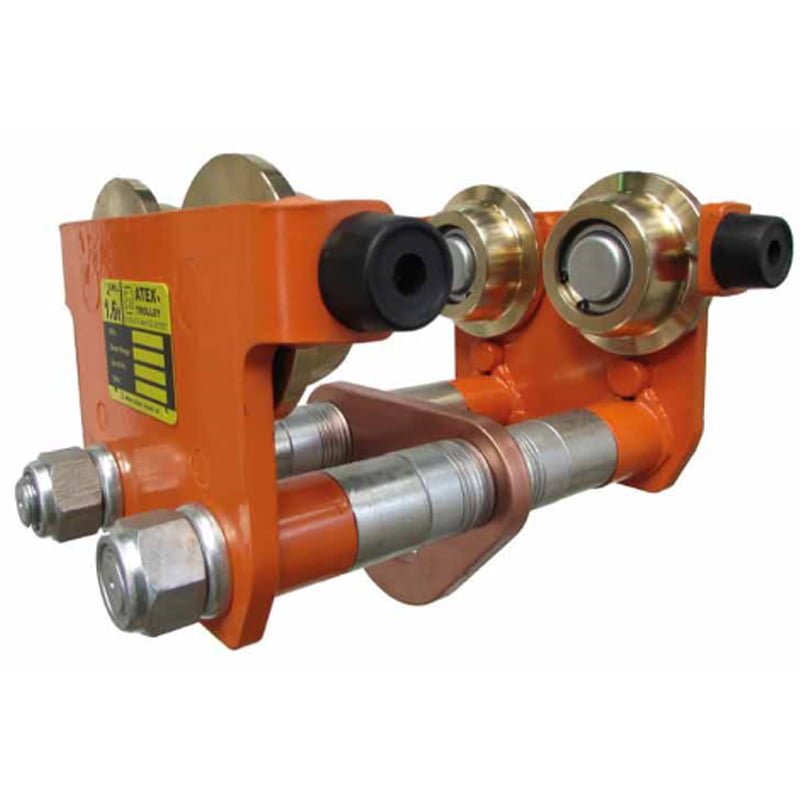

The William Hackett WH-PT ATEX Push Trolley meets and exceeds the requirements of international standard and British Standard:
BS EN 13157:2004 + AI:2009
It also complies with the requirements of ATEX Directive 2014 / 34 / EU and Machinery Directive 2006 / 42 / EC.
This high quality trolley range is precision engineered so that it works for W.L.L. capacities from 500kg up to 2 tonnes. The ATEX push trolley enables exact positioning or easy traversing of large loads with manual hoists.
The design of the Hackett series trolley also means that it suits various track widths.
The precision machined trolley wheels rotate on maintenance sealed ball bearings.
Furthermore, all of the William Hackett push trolleys have anti-jump bars and rubber end stops as standard. Additionally, the ATEX range is fitted with solid bronze wheels and has a copper plated hanging plate.

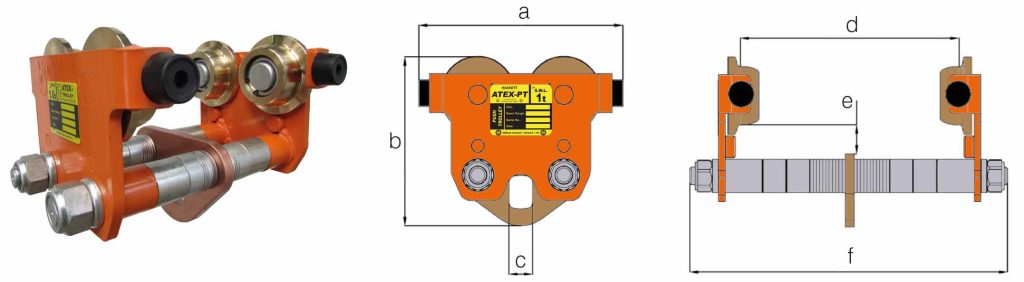

| Part Code | WLL tonnes | Min. Radius of Curve m | a mm | b mm | c mm | e mm |
|---|---|---|---|---|---|---|
| 044.ATEX.050 | 0.50 | 0.80 | 190 | 154 | 22 | 27 |
| 044.ATEX.100 | 1.00 | 0.90 | 206 | 180 | 30 | 26 |
| 044.ATEX.200 | 2.00 | 1.00 | 246 | 210 | 37 | 26 |
|
– |
|
|---|
