Long Shank Collared Eyebolt BS4278 – Metric

Please call to check availability

Product Description

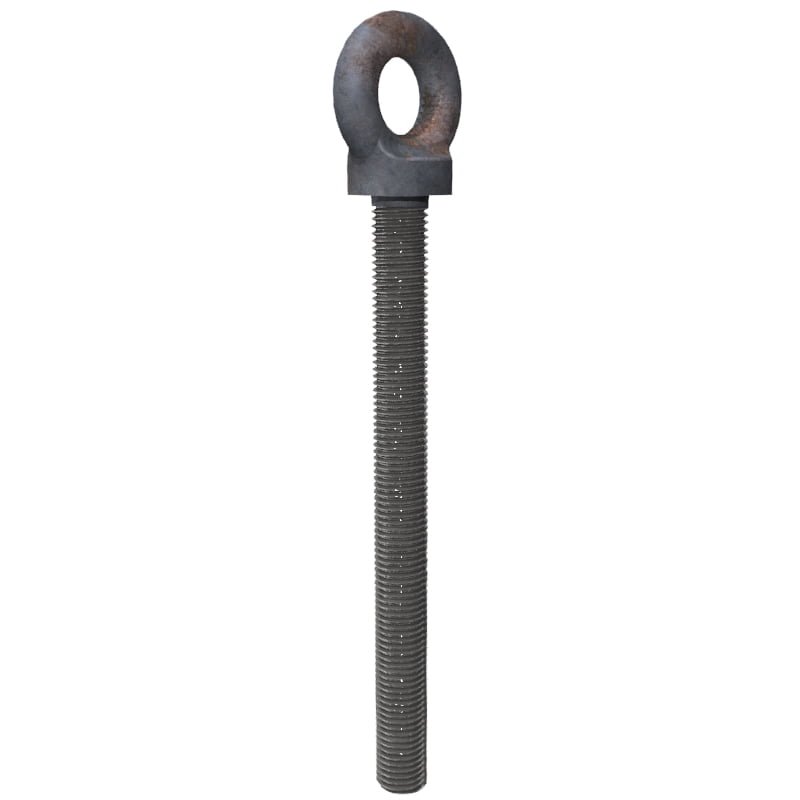

Long Shank Collared Eyebolt – Metric Coarse Thread

Long Shank Collared Eyebolts have a 7 inch thread length.

  • Material: BS970-080A27 hardened and tempered
  • Safety Factor: MBL equals 5 x SWL
  • Standard: BS4278 – table 1 – 1984
  • Finish: Self colour



Long-Shank-Collared-Eyebolt-Dimensions

Working Load Limit
(t)
Diameter Thread
a (mm)
Diameter Base
b (mm)
Diameter Eye Outside
c (mm)
Diameter Eye Inside
e (mm)
Thickness Collar
f (mm)
Height
g (mm)
Thread Length
h (mm)
0.2510223315736178
0.4012223315736178
0.50142944201048178
0.80162944201048178
1.60204059271465178
2.50245277351784178
4.003065964422106178
